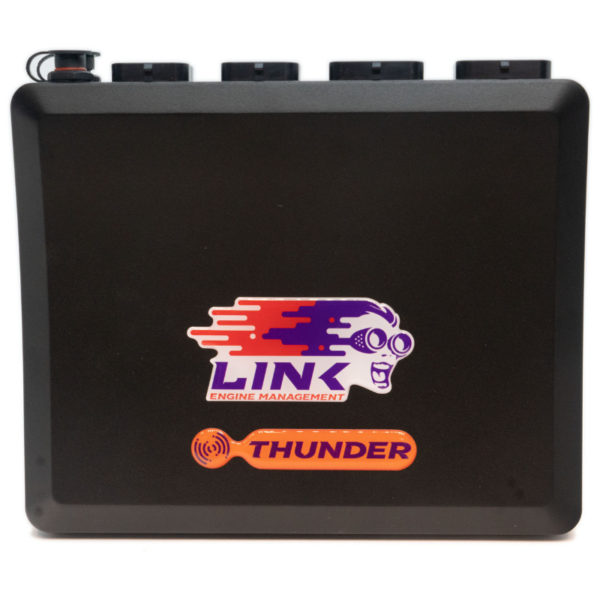

Description
SPEC OVERVIEW
Inputs
16 x Digital inputs (6 are high speed differential type for ABS sensors etc)
4 x Temperature inputs
16 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
2 x LSU 4.9 Wideband lambda sensor inputs
2 x K Type Thermocouple inputs
Outputs
8 x Peak and Hold injection drives
8 x Ignition drivers
18 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs
Communications
2 x CAN bus
1x Serial (RS232) connection
1x USB tuning connection
Advanced features not found on the Xtreme or Fury:
2 x Onboard digital wideband lambda controllers, no separate box required. Higher accuracy, simple setup and long sensor life are some of the advantages compared to a separate analog input wideband device.
2 x Fully programmable E-throttle controls complete with capability of gear shift throttle blip and antilag (for engines with 2 electronic throttle bodies).
2 x K type thermocouple EGT inputs – direct connection of EGT sensors with no extra interface box.
